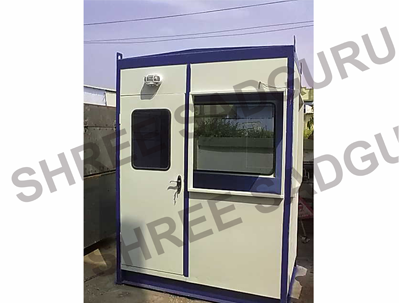

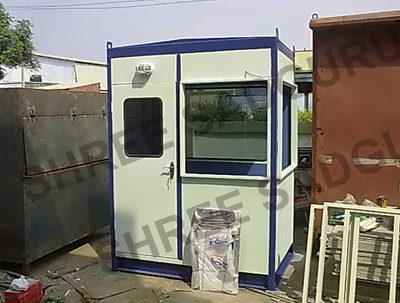

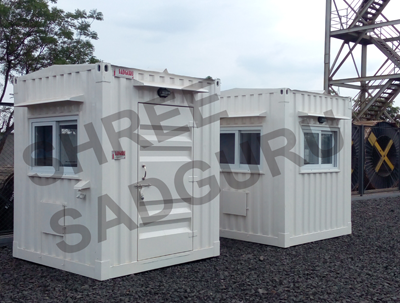

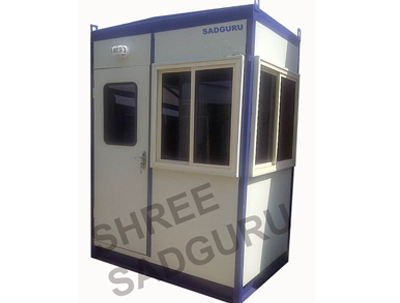

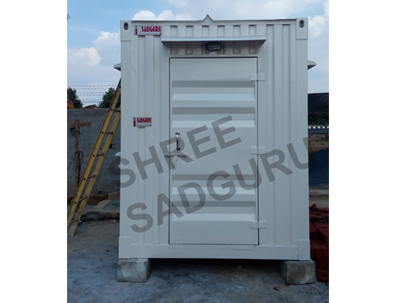

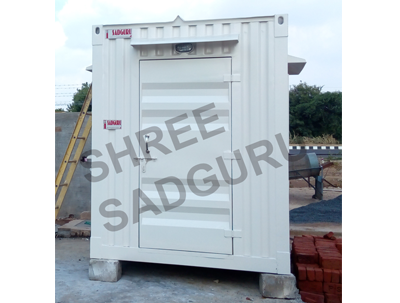

Security Guard Cabin

Technical Specification

Size : 4' x 4' x7'.6"       6' x 4' x 7'.6"       6' x 6' x 7'.6"       8' x 8' x 7'.6"

Flooring Frame

Frame made of 75mm Sq.Pipes with 50mm Pipe grid of 600mm x 600mm, 18mm Marine plywood fixed on this Grid with 1mm vinyl carpet.

Roof Frame

Roof Frame made of 75mm Sq.Pipe with 50mm Sq.pipe Grid. Ms.16g Sheet welded on top of the frame to form two sided slope roof .

Exterior Walls

12mm Bison Panel Fitted on MS Frame. Wall coated with two coats Primer from both sides and two coats of synthetic enamel satin finish paint from outside and Inside. Colour of your choice.

Windows

Aluminum Sliding Windows With Monsoon Shed

Doors

M.S. Door with standard hardware.

Interior Roof

Interior Roof Insulated with Glass Wool of 50mm thickness & Inside Roof Paneling 4mm Hardener Sheet .

Electrical

Branded Electrical Concealed Wiring (Poly Cab) Switch & Socket points.
